New Feature - astah* 6.2

E-mail Print PDF
  • Sun Microsystems JDK 6 Update 16 (JRE 6 Update 16) or later is required to run astah*. (astah* no longer runs on JDK 5)
New Functionsastah* professionalastah* UMLastah* community
Alignment Guide ✓ ✓ ✓
FreeHand ✓ ✓ -
Oval, TextBox, Filled Rectangle, Corner-rounded Rectangles ✓ ✓ ✓
Improvements on Combo box of Property view ✓ ✓ ✓
ER Diagram
Add multiple domains at once		 ✓ - -
Sequence Diagram
New menu [Create Reply Message] is added		 ✓ ✓ ✓
Statemachine Diagram
Improvements on States and Submachine States		 ✓ ✓ ✓
BusinessActor, BusinessUseCase, BusinessEntity and BusinessWorker ✓ ✓ ✓
Other Improvements ✓ ✓ ✓

Alignment Guide

When placing model elements on the diagram, an alignment guide line(green dashed line) appears to assist you to place models aligned with others.

alignmentguide_en1 alignmentguide_en2

FreeHand

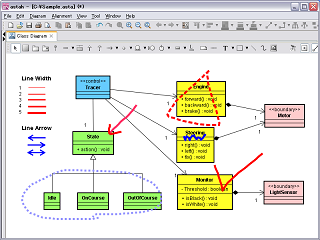

freehand_s

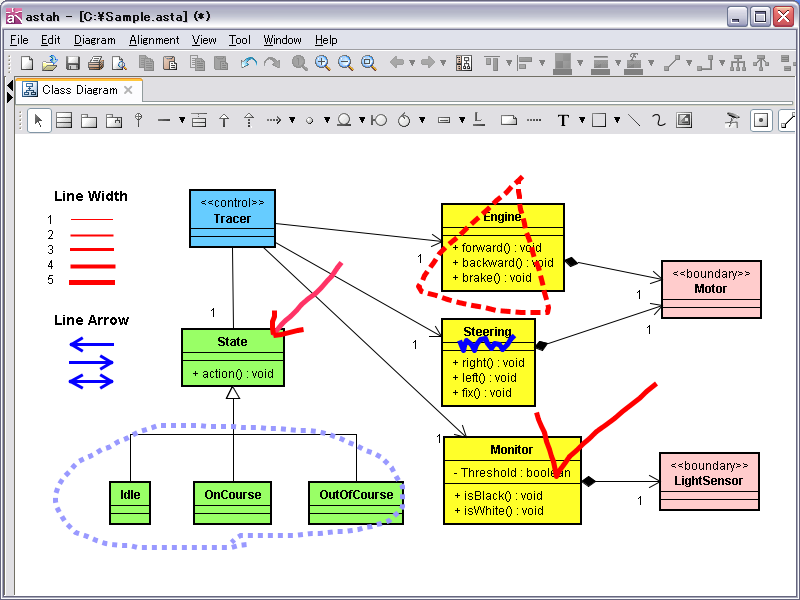

Now astah* allows free-hand drawing on diagram.

It can be used to circle or check models to emphasize them or draw arrows to point models during the review with team members or presentations.

FreeHand brings new ways to present the model designs on astah*.

Oval, Filled Rectangle, Corner-rounded Rectangle and Textbox

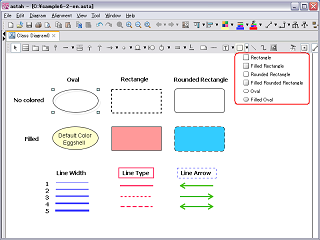

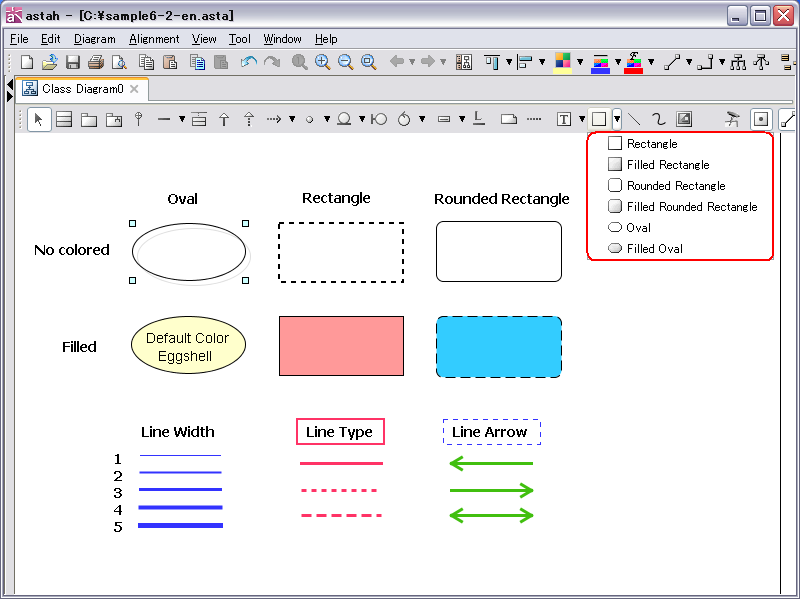

oval_rectangle_en_s New model elements, Oval, Filled Rectangle, Corner-rounded Rectangle and Textbox are added on tool bar of most diagrams editors.

Now you have more options to add something to your models other than rectangles. The form and look can be all customized the way you want such as line color, fill color, line width, line type and arrows/non-arrows.

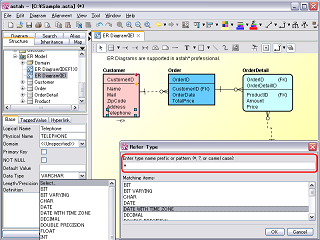

Improvements on Combo box of Property view

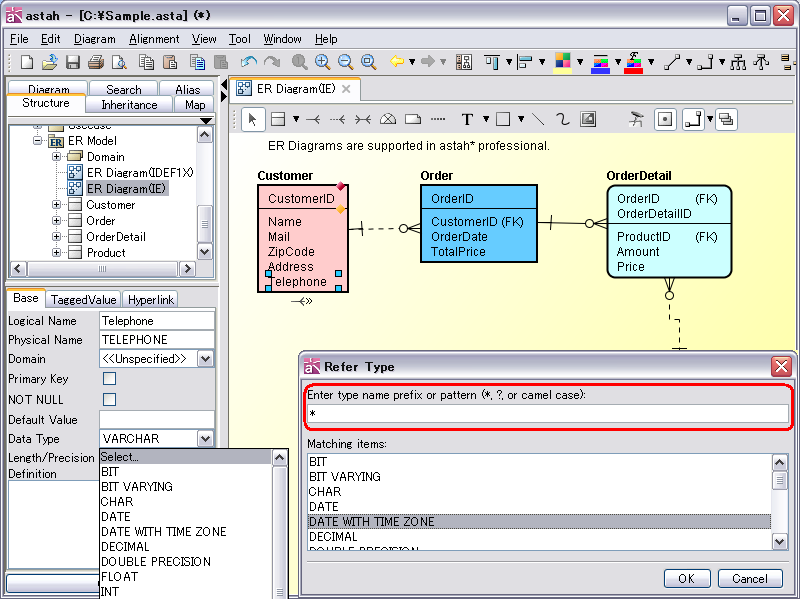

Now it's faster to set up Type for models from the combo box!

combobox_select_en_s
  • Type first some letters of Type in Combo box you want to set for models. astah* picks up selections that match with what you typed and you can just select it to set for models.
  • Wildcard Support such as * and ?
  • 20 selections appear in the Combo box now

ER Diagram

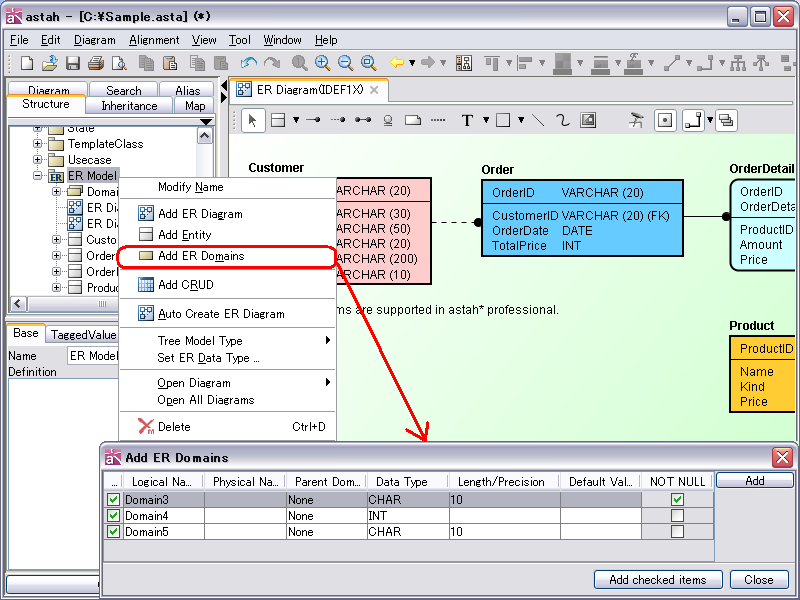

add_multipledomain_en_s

Now astah* allows you to add plural domains at once from [Add ER Domains] menu from Property View / Tool bar menu



Select ResourceEntity, Event Entity or SummaryEntity from ER Entity's dropdown list.

er_entity_button_en

Improvements on Sequence Diagram

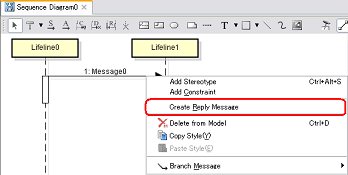

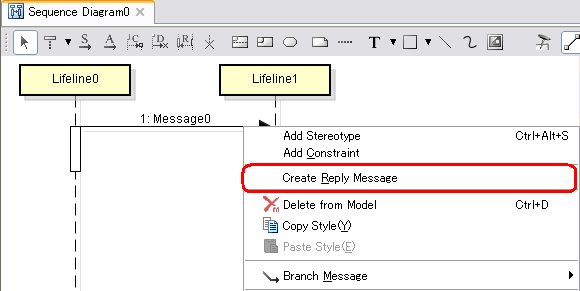

  • [Create Reply Message] added on Message's Pop-up menu
  • Reply Message can be created for Frames and InteractionUse
sequence_replymessage_en_s

Improvements on Statemachine Diagram

  • Resizing the States/Submachine States makes the its name, InternalTransition, Entry/Do/Exit contents wrapped automatically

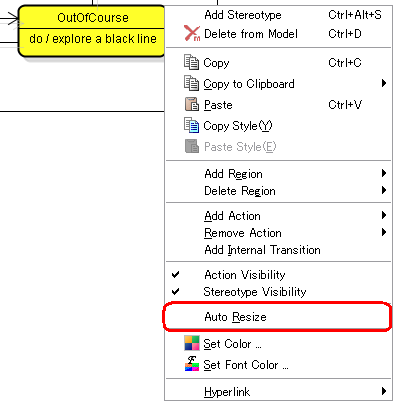

  • [Auto Resize] menu is added on States/Submachine State's Pop-up menu
on 6.1.1
 on 6.2
 Auto Resize from pop-up menu
statemachine_statenowrap statemachine_statenowrapped statemachine_autowrap_en_s

Business Actor and Business UseCase

6.2_usecase_toolbar_en

New added models:

Diagram New support model elements
Class Diagram BusinessEntity, BusinessWorker, InstanceSpecification (BusinessEntity) and InstanceSpecification (BusinessWorker)
UseCase Diagram BusinessActor, BusinessUseCase, BusinessEntity and BusinessWorker
Sequence Diagram
 Lifeline (BusinessActor), Lifeline (BusinessEntity) and Lifeline (BusinessWorker)
Communication Diagram

Lifeline (BusinessActor), Lifeline (BusinessEntity) and Lifeline (BusinessWorker)
Deployment Diagram InstanceSpecification (BusinessEntity) and InstanceSpecification (BusinessWorker)

Other Improvements

knob_en
  • Shape and color of knobs that appear when you select models can be changed as you like
  • Move diagram tabs to move by drag and drop
  • New shortcut key [Ctrl + W] to close the diagram tab
